INTRODUCTION

The following Procedure explains how to set up and configure the VIPER DVRs & NVRs to send email on an event via the Web Interface. [Separate procedures are available for Local setup]

Emails can be triggered by the following events

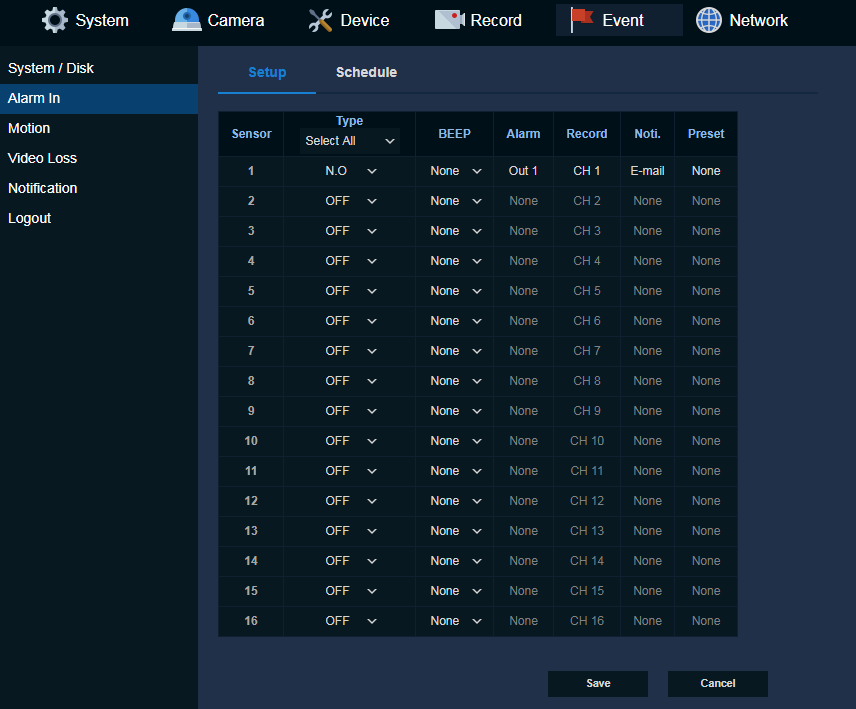

  • Alarm-In (Fig 1.)
  • Motion Detection

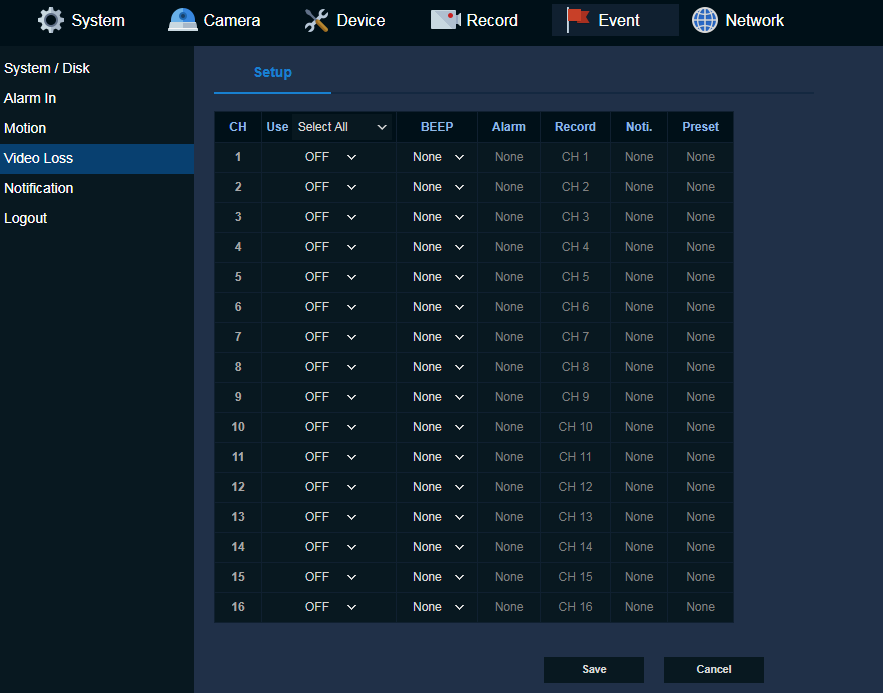

  • Video-loss (Fig 2.)

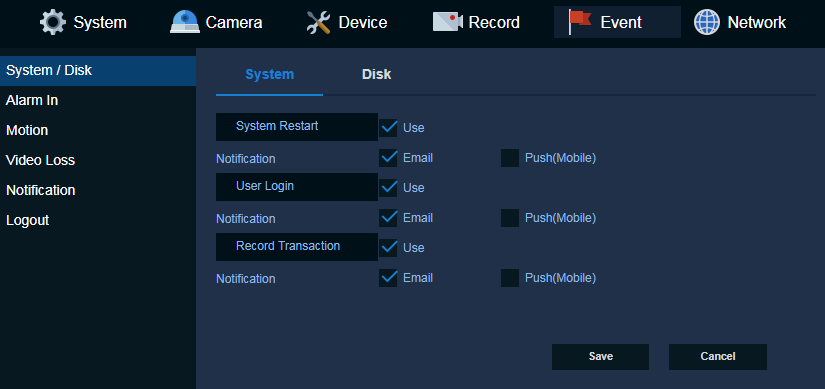

  • System Events (Fig 3.)
    • System Restart
    • User Login
    • Record Transaction
  • Disk Events (Fig 4.)
    • Disk Unplugged
    • Disk Full
    • S.M.A.R.T Fault













Fig 1.

Fig 2.

Fig 3.

Fig 4.



In this procedure we have used “Motion” as an event; the process is similar for all events listed above. {See user manual for more information}

SETUP

It is assumed the VIPER has already been configured and recording. A Network connection to a Router has been setup.

Menu SETUP – VIPER

  • Web Interface to set up “Open web browser Type IP Address of device” (IE or Chrome are recommended)
  • Login in via Admin account, then select “Setup”



  • Go to “Record tab” select required channels to record on event Alarm & Motion

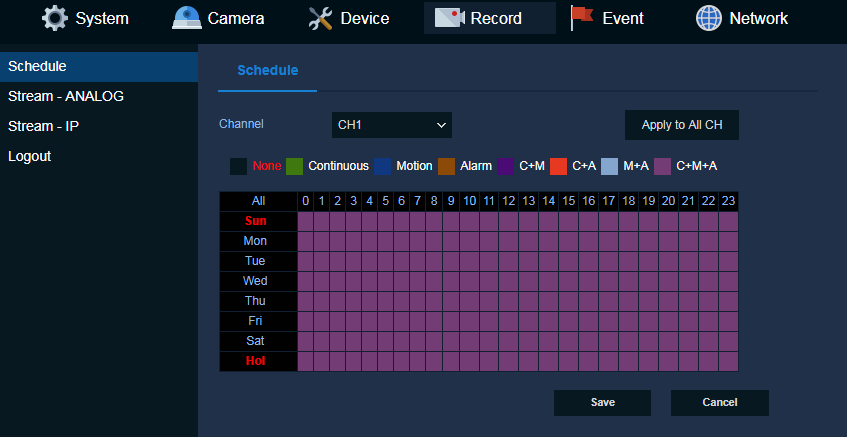

  • In the schedule below channel 1 is set to Continuous + Motion + Alarm (Fig 5.)

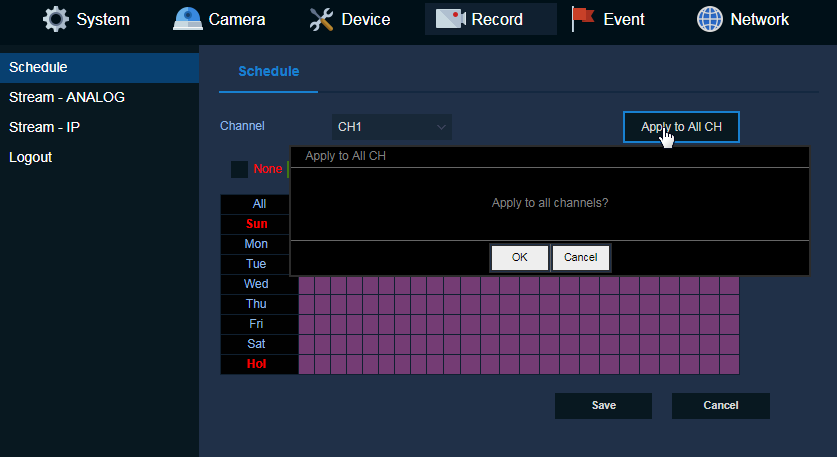

  • The Schedule can be copied to “All or Selected CH” if required (Fig 6.)
  • Once done Click Save




Fig 5.
Fig 6.

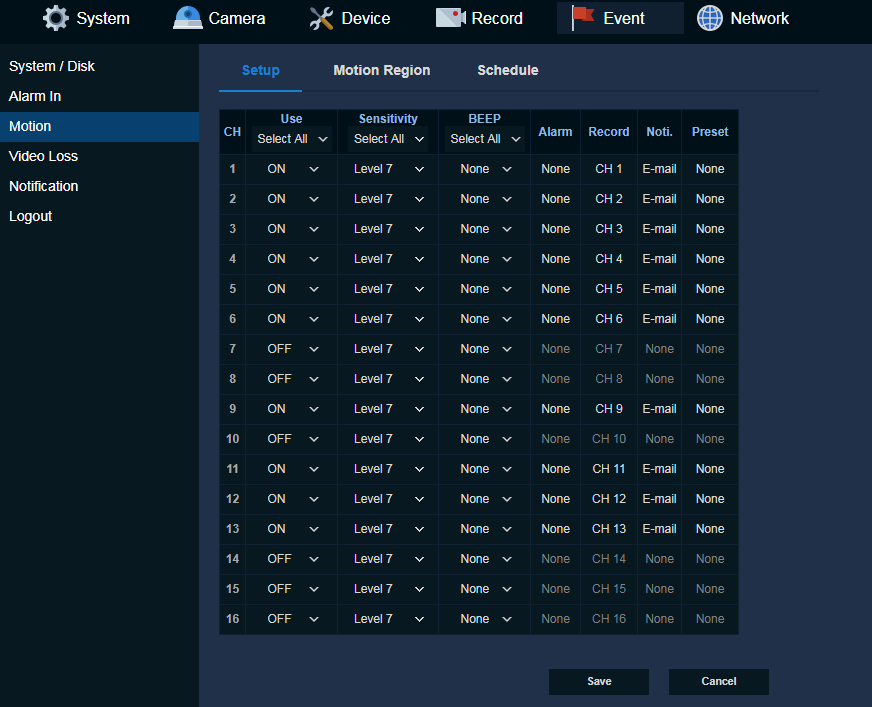

  • Go to “Event tab” select Motion > Setup to configure actions triggered via “Motion” (Fig 7.)
  • Select the CH or CH’s that will be used to trigger the required action
  • If a local notification is required enable “Beep” {none, 5sec up to 1hr}





Fig 7.
Fig 8.
Fig 9.

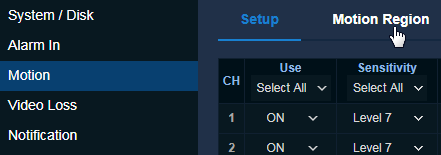

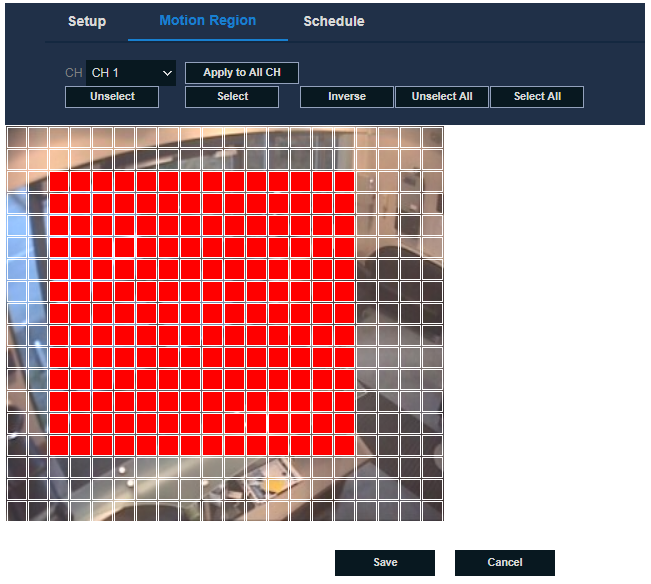

  • Click on “Motion Region” [Fig8] to adjust Motion areas and Sensitivity associated to the channel if required then click Save, red grid is active area. By default channels are set to “All” (Fig 9.)
  • Go back to “Setup” tab Click on “Alarm, Record, Noti or Preset” on the required channel (Fig 10.)

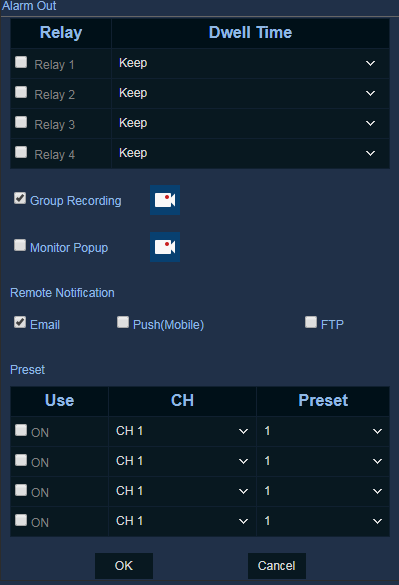

  • Select E-mail then click OK

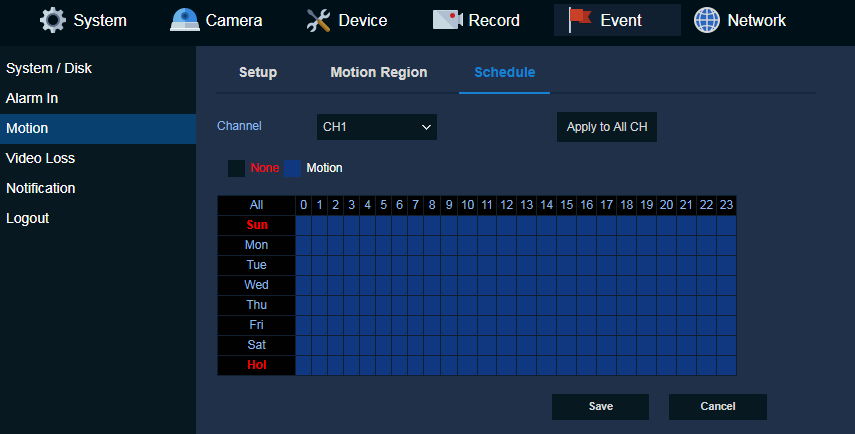

  • Select Schedule configure Motion schedule once setup click Save (Fig 11.)


Fig 10.Fig 11.

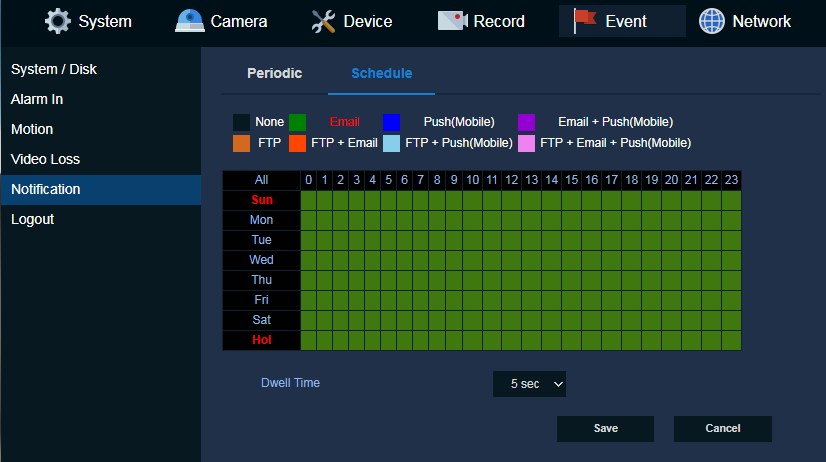

  • Select Notification > Schedule Select remote action required
  • Configure Schedule then apply. Options None, E-Mail, Push (Mobile), FTP or combination (Fig 12.)
  • Dwell time between events, Options are 5sec up to 1hr (Fig 13.) Recommend setting to 5 sec for Immix
  • Click Save when done




Fig 12.

Fig 13.


Remote Notifications Setup

The VIPER can be configured to send an E-mail or a Push Notification to Mobile. {See separate Procedure} This process assumes you have configured a network connection to a router.

E-Mail

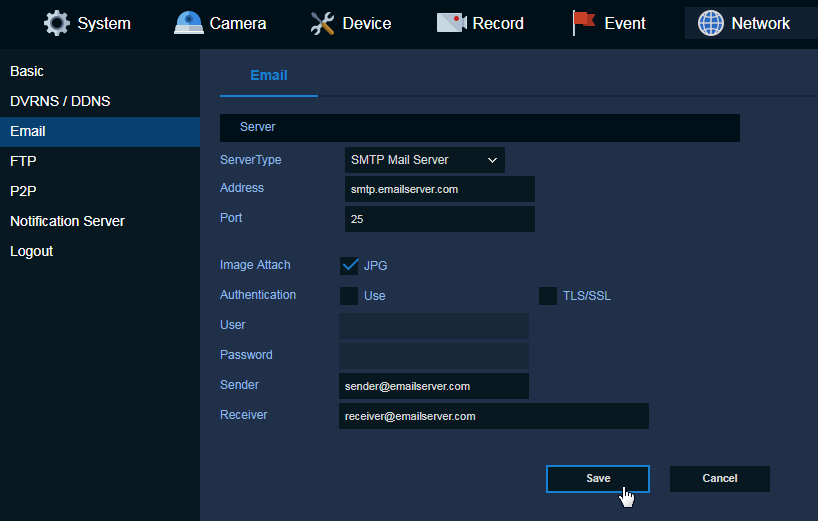

  • Go to “Network tab” select “E-Mail” then set up email server account details (Fig 14.)
  • Server Type - Select type of email sever “SMTP Mail Server”
  • Server address and Port – Enter details provided by Immix/Sureview
  • Image Attach “click” JPG if require a snapshot of the trigger to be attached to the email (Motion or Alarm)
  • Authentication/Protocol – This is not required by the Immix Server
  • Un Tick Use & TLS/SSL
  • Remove any ID and Password
  • Enter “Sender” details – Site ID provided by Immix/Sureview
  • Enter “Receiver” details – Site ID provided by Immix/Sureview
  • Once set up click Save




Fig 14.
Fig 15.


Sureview / Immix provide a test server where you can check Video, PTZ & check alarm events are being sent from the VIPER.


https://testmydevice.sureviewsystems.com


This completes the procedure.
