This guide provides details how to add a Xeno Nitro DVR [ XHDAR & XHDART Units only ] v2.0.1.49 or above of Viper-Central is required.

• Features Supported
  • Live
  • PTZ
  • Playback
  • Search [Calendar / Timeline
  • Backup / Export Footage
• Not Supported
  • Search Preview
  • Thumbnails
  • Step Playback (step forward/backward)

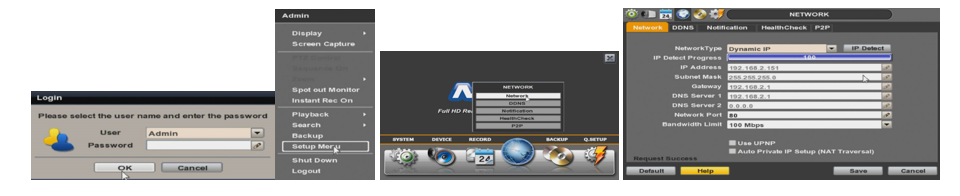

How to find IP Address of Nitro DVR

• Log-in to Nitro locally to get the IP Address

Log-in to Viper Central Software

• Double click on the Application short cut. [This will normally be on the Desktop] If not select via the Windows Programs Tree.
• Or “ Start > All Programs > VIPER-Central > VIPER-Central ”
• Log-in pop-up will be displayed.
• Enter Login ID and Password then left click "Log-in" button. { Note: System Preference and Set up depends on the Log-in User’s Authority }

Enter Setup Menu

• Move mouse to top left corner left click VIPER icon.
• Then left click "Setup"
• Then left click “+Add Device”

• Select Device Type “Recorder Type D” [Fig 1.]
• Enter Name, IP Address and Login Details of DVR. [Fig 2.]
• Once done click on “OK” [Fig 3.] then click on “Save” [Fig 4.]

• Menu set up will close Device will appear in Device tree on left hand side.

• You can now view and playback etc from the DVR, refer to Viper Central manual for more details.

This completes the guide.
