INTRODUCTION


The following Procedure explains how to add Vista VK2 IP Cameras to VIPER NVR's

Note.

NVR IP Address is set to 192.168.0.8 & IP Camera Addresses have been set to 192.168.0.11 [IP Cam1] 192.168.0.12 [IP Cam2] etc

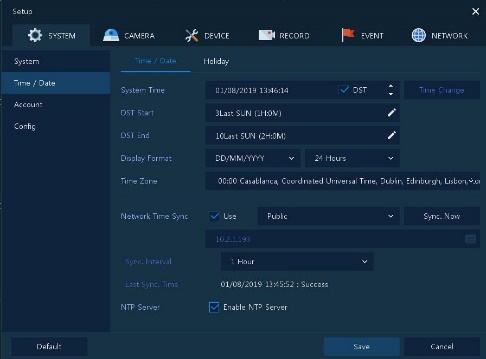

It is important to make sure the Time & Date are the same as the VIPER Unit. See separate “How to guide”

All guides are available here https://vistacctv.freshdesk.com/support/home




Method

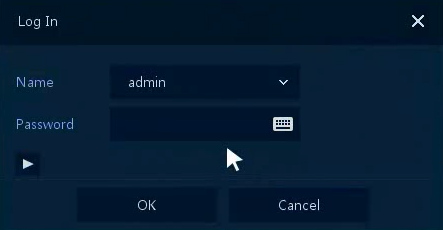

  • Right click on screen with mouse, Menu appears then left click [Log In] enter admins user and password to login (Fig 1)
    • If “Easy Installation” runs, cancel by clicking on ‘X’ top right to continue with this procedure.

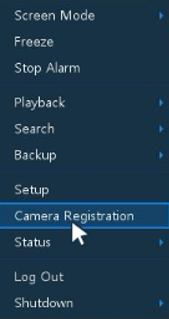

  • Right click in live screen select [Camera Registration] (Fig 2)


Fig 1

Fig 2

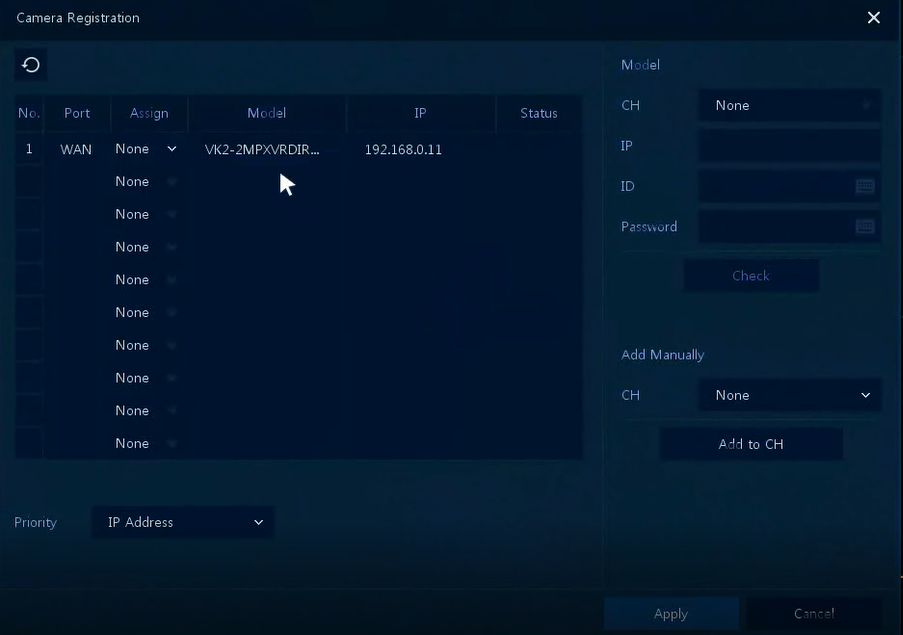

  • List of cameras discovered is displayed (Fig 3)

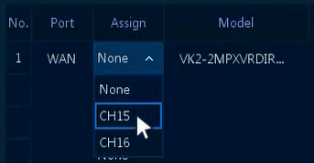

  • [Assign] Ch number i.e. CH15 (Fig 4)

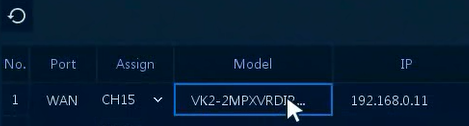

  • Click on camera (Fig 5) then enter Username and Password of camera you are adding










Fig 3

                    Fig 4                                       Fig 5

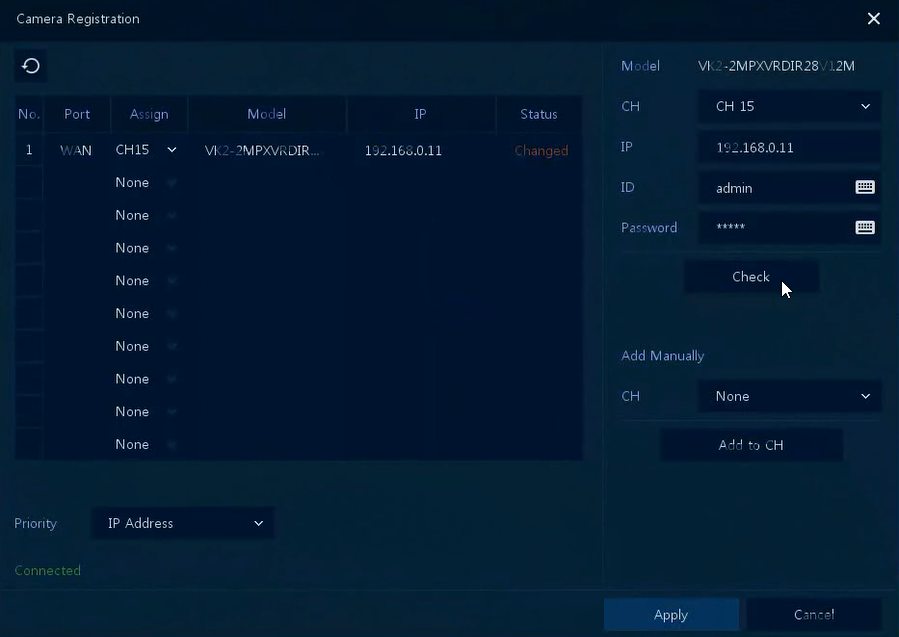

  • Click on [Check] if details are correct ‘Connected’ will be displayed bottom left (Fig 6)
  • Click [Apply]


Fig 6

Fig 7

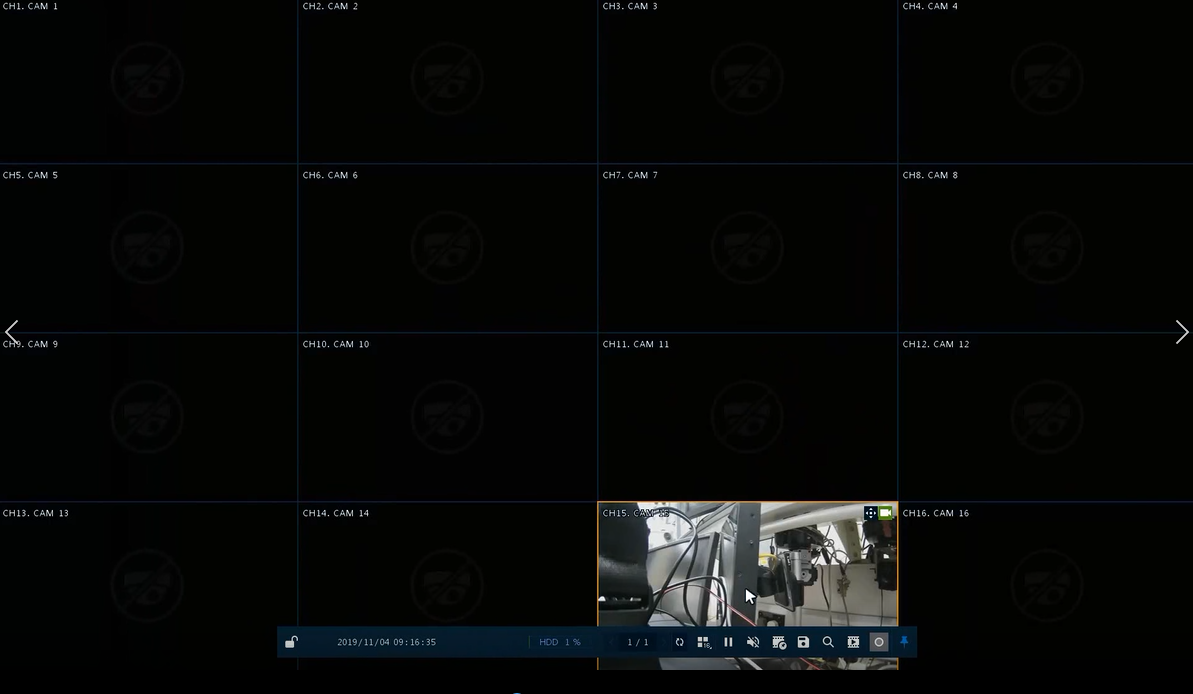

  • Camera will be added and displayed if correct details are entered (Fig 7)




Please see separate guide for configuring Motion Recording. https://vistacctv.freshdesk.com/support/home



This completes the procedure.
