INTRODUCTION

This Procedure shows how to Disable the “Display Message” being displayed on the Monitor.

Equipment required: PoE Network Switch or 12v DC PSU (to power the PVM10CAM), small torx wrench that comes with the PVM10CAM to remove rear cover, 1 x CAT5e patch lead and PVM10CAM IR remote

  1. Power up Monitor

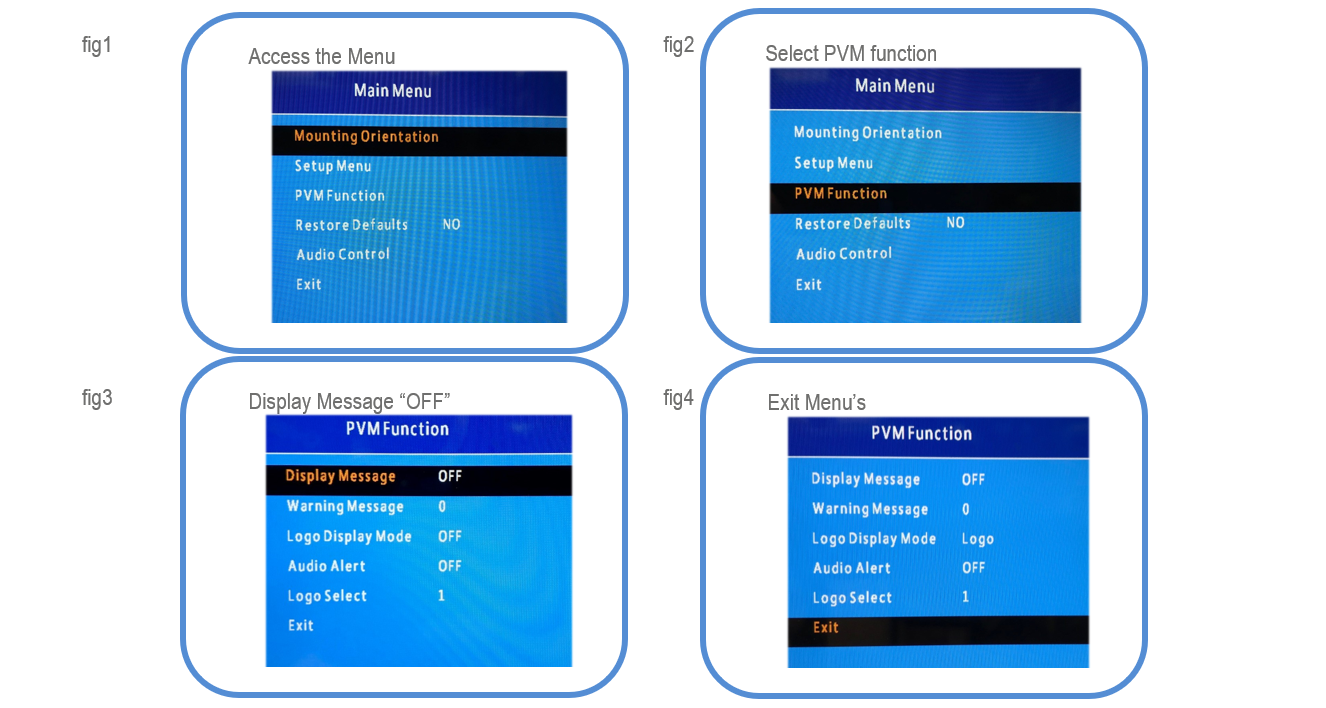

  2. Take PVM10CAM IR remote and press menu button (fig1)
  3. Select “PVM Function” using the up/down buttons (fig2)
  4. Select “Display Message” using the up/down buttons
    1. Once highlighted press “OK” button
    2. Using left/right buttons change to “OFF” press “OK” button to save (fig3)
  5. Once complete exit out of Menu’s (fig4)



This completes the procedure.
