INTRODUCTION

This Procedure shows how to Disable the Logo being displayed on the Monitor.

Live Camera displayed all the time on the VK2-PVM10CAM Public View Monitor.

Equipment required: PoE Network Switch or 12v DC PSU (to power the PVM10CAM), small torx wrench that comes with the VK2-PVM10CAM to remove rear cover, 1 x CAT5e patch leads and VK2-PVM10CAM IR remote)

  1. Power up Monitor

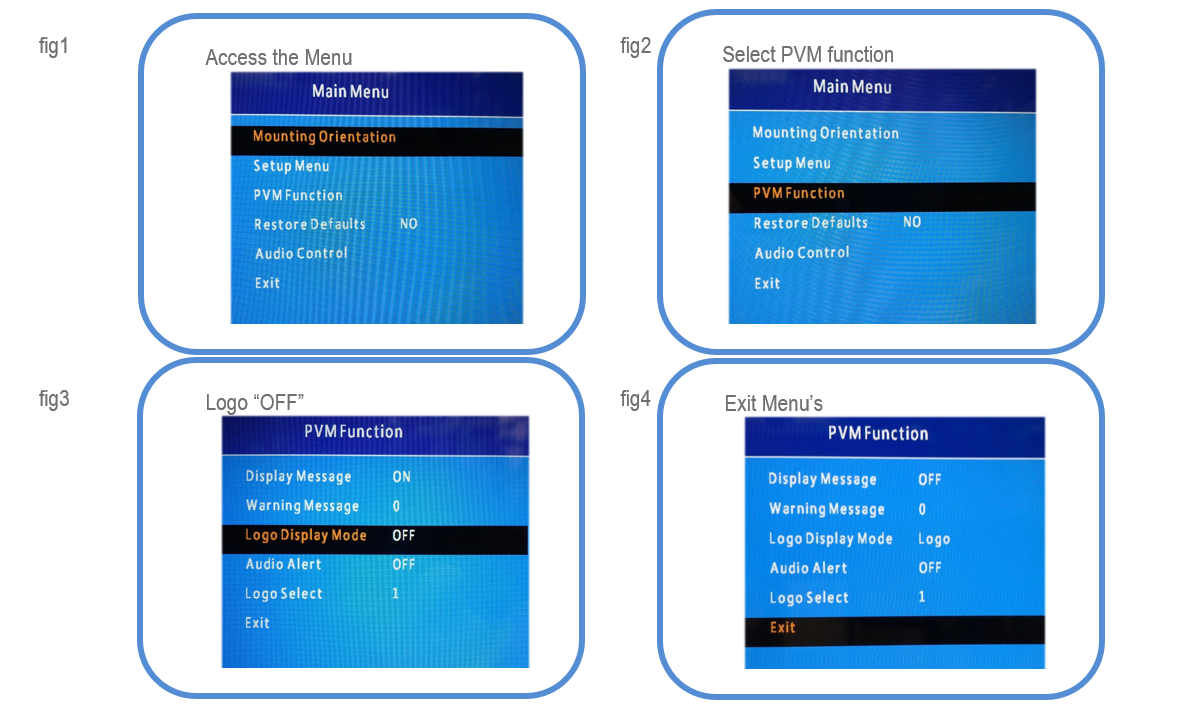

  2. Take VK2-PVM10CAM IR remote and press menu button (fig1)
  3. Select “PVM Function” using the up/down buttons (fig2)
  4. Select “Logo Display Mode” using the up/down buttons
    1. Once highlighted press “OK” button
    2. Using left/right buttons change mode to “OFF” press “OK” button to save (fig3)
  5. Once complete exit out of Menu’s (fig4)


This Completes the procedure.
