INTRODUCTION

The following Procedure explains how to add the ONVIF Streams from the PVM10CAMN to a Hanwha NVR Locally using a Mouse connected to the unit. The NVR has 2x Networks in this procedure we used Network 1. {Both Networks have been tested} Please see NVR manual for more information on the different Networks.

Note:

The PVM10CAMN uses Port 8080 for ONVIF

PROCEDURE

Prerequisites:

NVR Model Used XRN-2010A v2.42_200303163350	PVM10CAMN v00.99.99.55
Hanwha NVR connected to same Network as PVM	PVM10CAMN connected to PoE or 12VDC PSU
Monitor connected to NVR HDMI Por	Default Credentials Used
Time and Date has been correctly set on PVM and NVR	PVM10CAMN uses Port 8080 or 80 for ONVIF Dependant on Firmware v00.99.99.99 and above uses Port 80

Follow below Procedure:

Right-click the mouse while in Live view and click [Login] – enter Admin ID and password

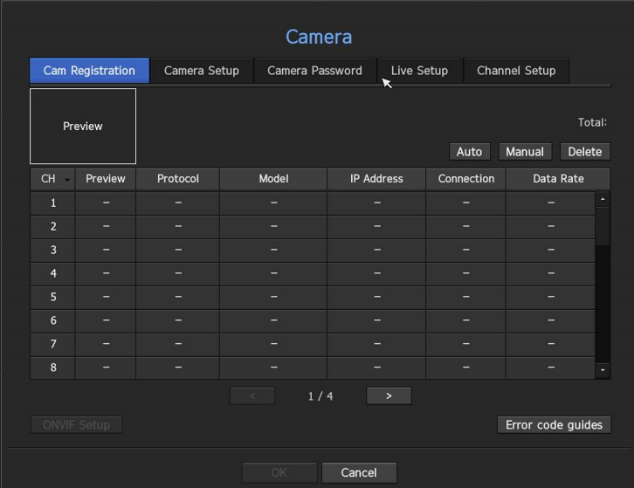

Now Select [Menu] then [Device] then [Camera] [Cam Registration] tab should be highlighted {Fig 1}

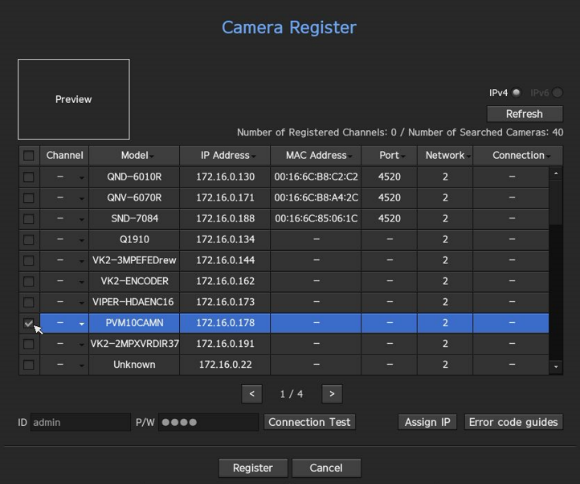

Select [Auto] unit will then discover units on the same Network as the NVR, Select “PVM10CAMN” from the List {Fig 2}

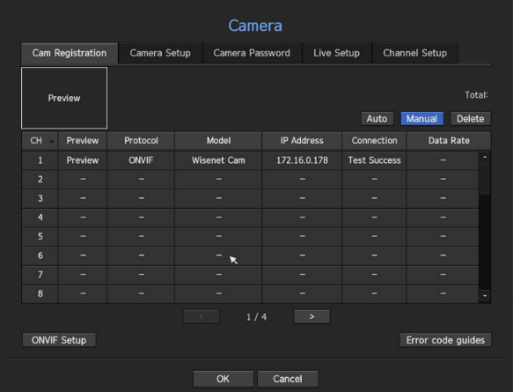

Fig 1

Fig 2

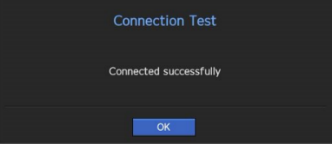

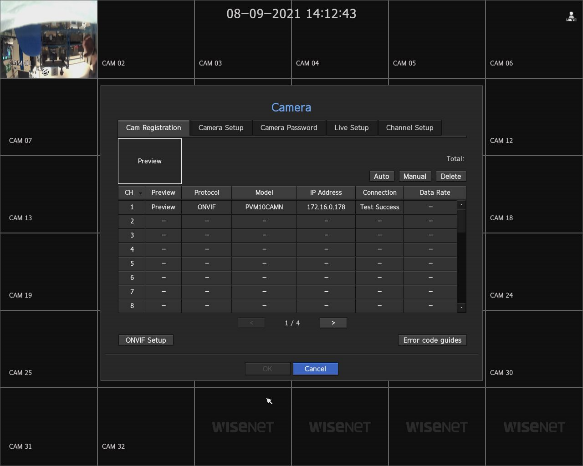

Enter ID and Password of PVM10 [Default admin/admin] then select [Connection Test] confirmation of successful connection is displayed {Fig 3} select [Close] then select [Register] then select [OK] {Fig 4}

Video from PVM should be displayed in next available Channel {Fig 5}

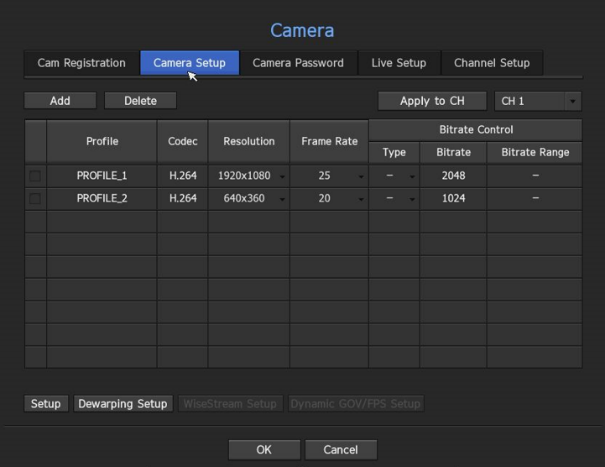

Next select [Camera setup] tab “Stream Profiles” will be displayed here. These can be altered if required, select [OK] when done {Fig 6}

Fig 3

Fig 4

Fig 5

Fig 6

The PVM10 can also be added manually to the NVR the next steps show the differences.

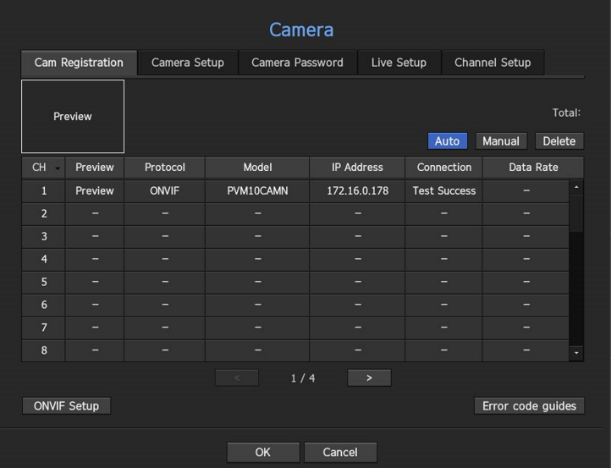

Select [Manual] {Fig 7}

Change [Protocol] to “ONVIF”

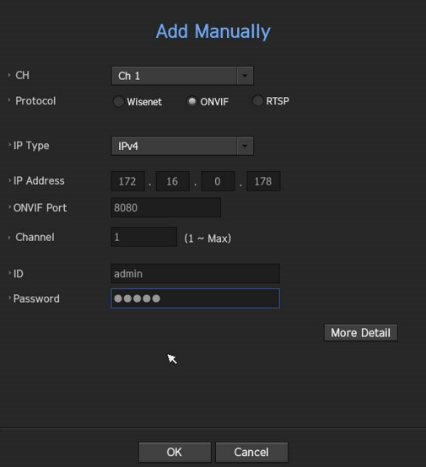

Enter the camera [IP Address] and [ID - Password] as per {Fig 8} Note Port 8080 or Port 80 (dependant on firmware) is used for ONVIF on the unit then select [OK]
