INTRODUCTION

The following Procedure explains how to add the ONVIF Streams from a PVM10CAMN to a Hanwha NVR Remotely using a PC/Laptop on the same network as the units. The NVR has 2x Networks in this procedure we used Network 1. {Both Networks have been tested} Please see NVR manual for more information on the different Networks.

Note:

The PVM10CAMN uses Port 8080 for ONVIF

PROCEDURE

Prerequisites:

Follow below Procedure:

• Enter the IP Address of the NVR in the Web Browser address bar in this procedure we used IE [recommend you use this; other browsers have not been tried but should work]

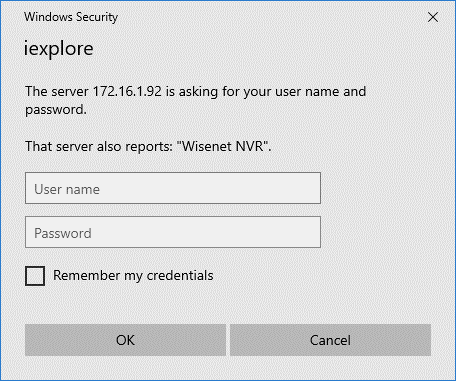

• [Login] window is displayed for the NVR enter [Admin ID and Password] {Fig 1}

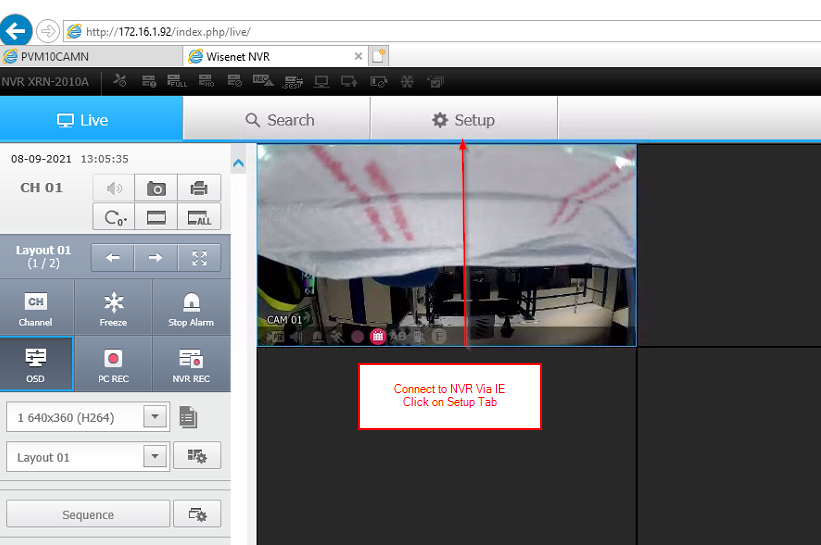

• Once Logged in select [Setup] {Fig 2}

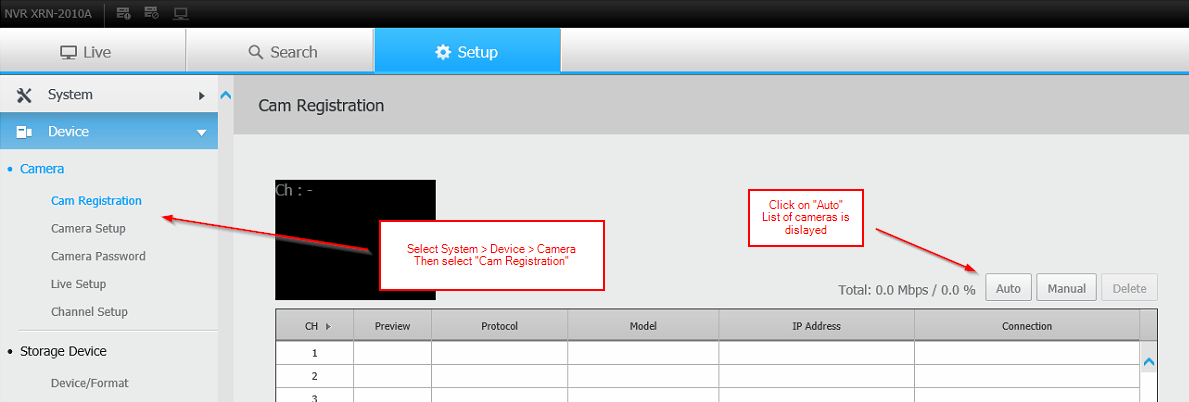

• Select [System] then [Device] then [Camera] then [Cam Registration] then select [Auto] {Fig 3}

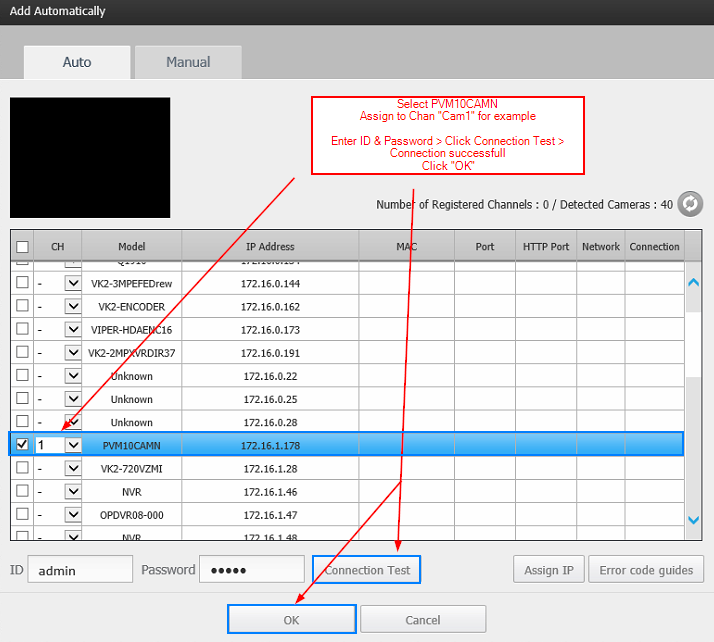

• Unit will then discover cameras on the same network as the NVR, select “PVM10CAMN” from the list [assign a channel] Next enter ID and Password of PVM10 [Default admin/admin] then select [Connection Test] {Fig 4}

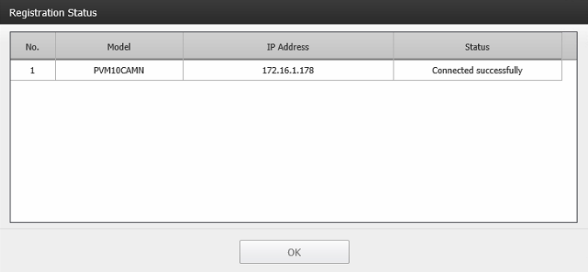

• Confirmation of successful connection is displayed, select [OK] {Fig 5} List of cameras is displayed with “Success” next to camera added select [OK] “Connected Successfully” {Fig 6} is displayed select [OK] once more

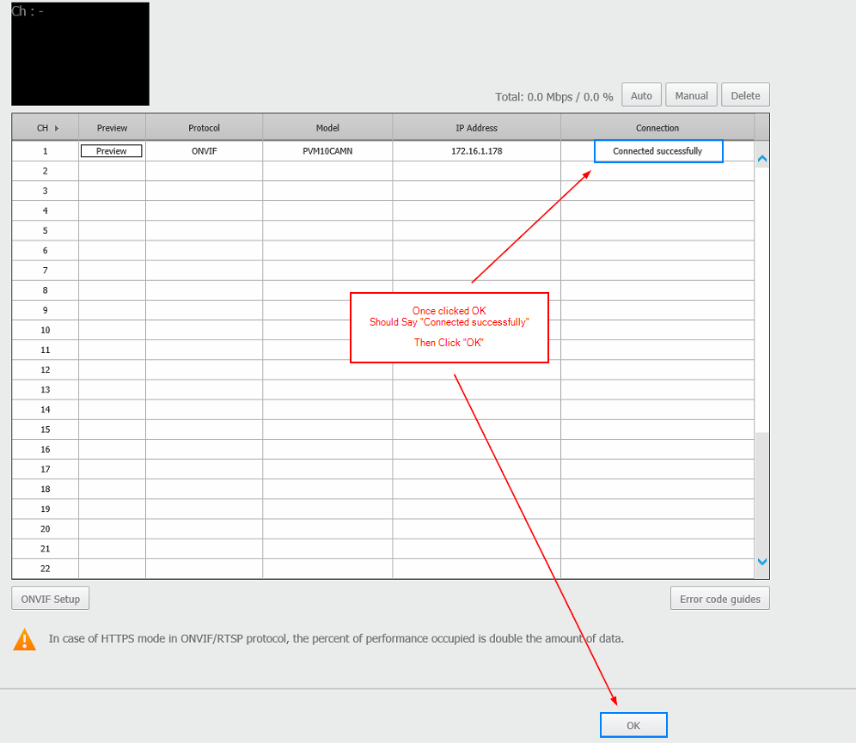

• [Saving….] Message displayed {Fig 7} Once saved [Connection] should say “Connected” {Fig 8}

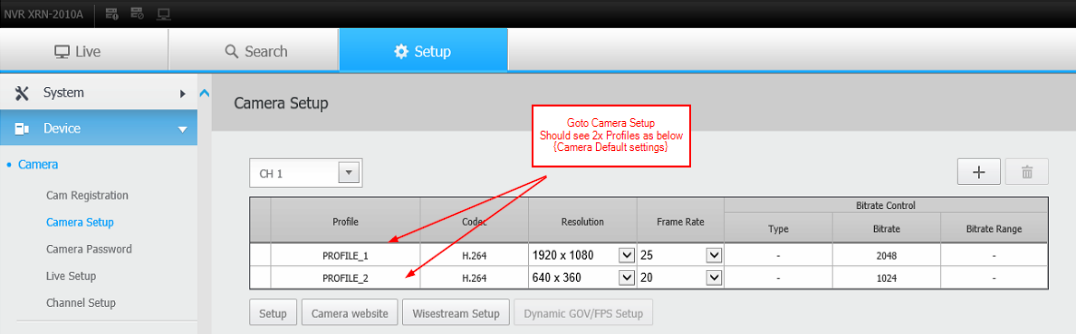

• Now select [Camera setup] tab Stream Profiles should be shown {Fig 9}

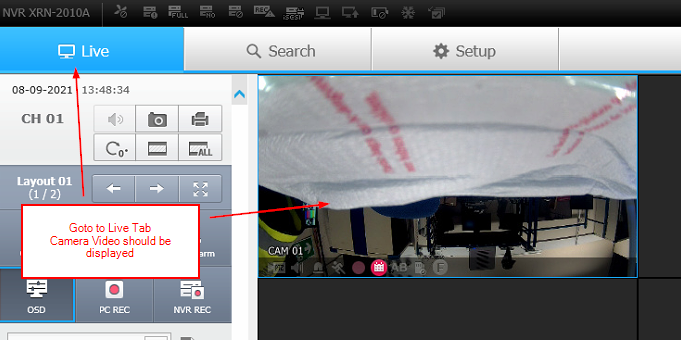

• Next Go to [Live] tab Camera Video should be displayed {Fig 10}

The PVM10 can also be added manually to the NVR the next steps show the differences.

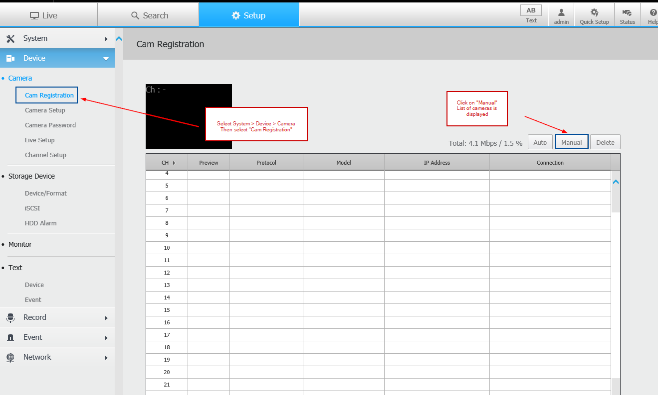

• Select [Manual] {Fig 11} Change [Protocol] to “ONVIF”

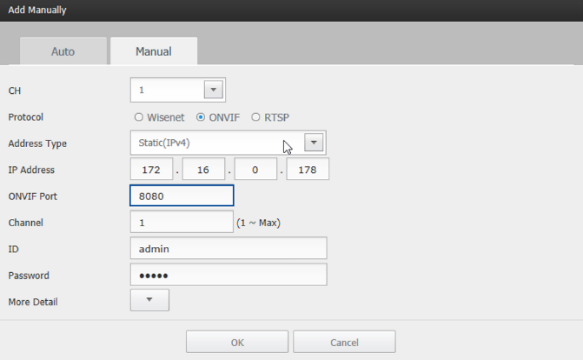

• Enter the camera [IP Address] and [ID – Password] as per {Fig 12} Note Port 8080 or Port 80 (dependent on firmware of the PVM) is used for ONVIF on the unit then select [Ok]

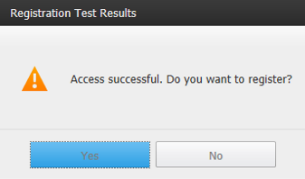

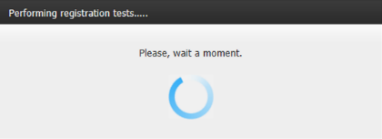

• Select [OK] performing registration tests.. is displayed then “Access successful. Do you want to register?” Select [Yes] {Fig 14}

This ends the procedure.
