INTRODUCTION


This procedure describes how to connect a Optio IP Camera to Vista VL-NVR


Procedure


If you do not have the password or IP address of the Optio camera, use the Optio IP utility to default or carry out any set up of passwords or IP addresses. Some Optio cameras will require a hard reset to remove forgotten password.

**For setting pre-configured camera passwords on the VL-NVR see footnote on this document**

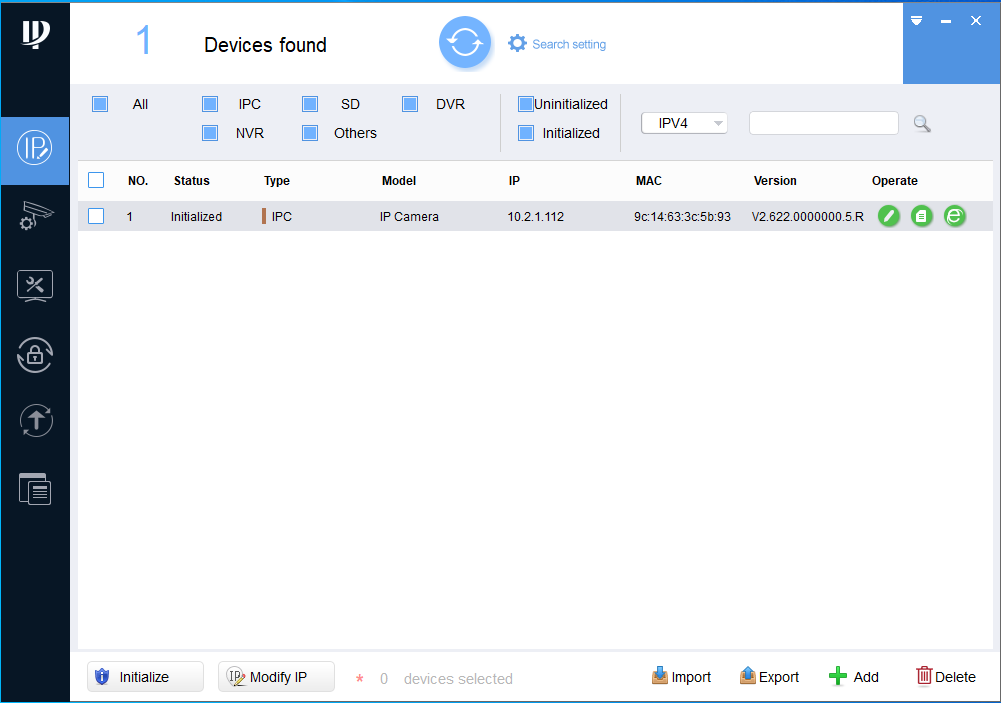

Use the Optio utility to connect to the Optio camera

https://www.dropbox.com/s/oh2z4x4s8r6e51e/IP_ConfigTool_V4.011.0000003.5.R.20190722.zip?dl=0



A screenshot of a computer

Description automatically generated



Set a username and password


A screenshot of a computer

Description automatically generated

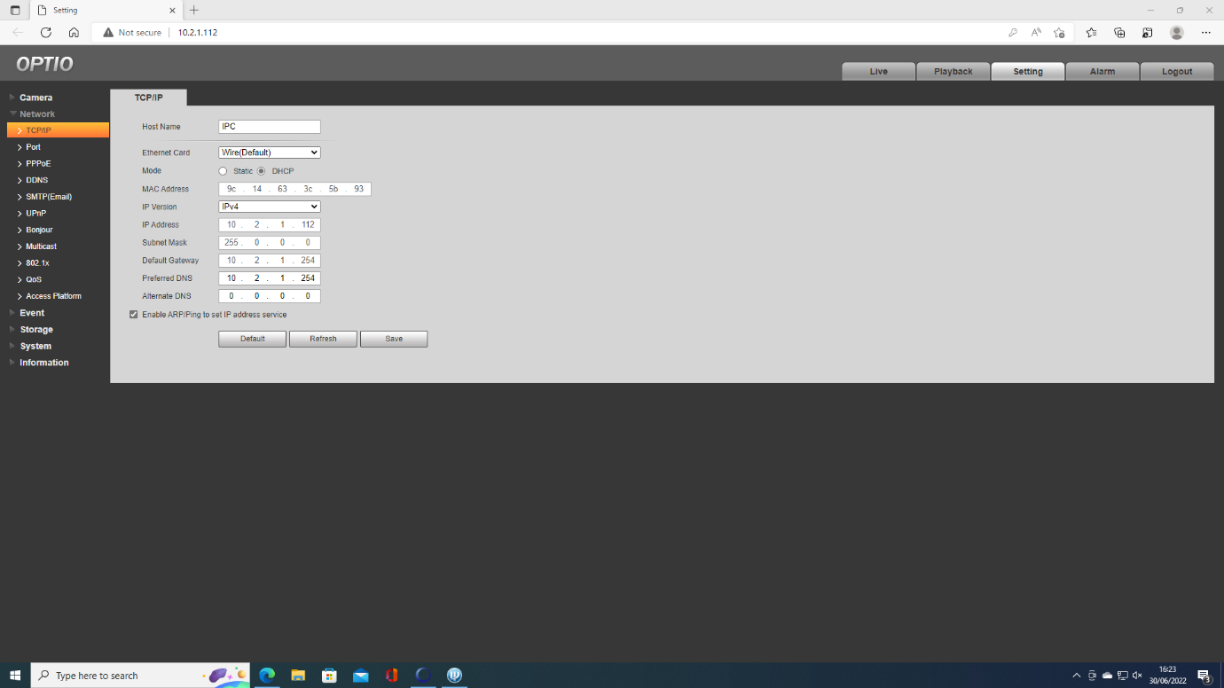

If you are connecting the camera via the PoE port set the camera to DHCP, if using LAN port set a suitable IP address

Connect camera to the VL-NVR either via the Lan port or a PoE port depending on the IP set up

Log in to the menu of the VL-NVR > Setting > Camera > Add a camera


A screenshot of a computer

Description automatically generated with low confidence



*The Optio camera will appear as Dahua camera in the search menu*



A screenshot of a computer

Description automatically generated



Camera found showing offline



Graphical user interface, application, website

Description automatically generated



Select the edit option input password and test

If the camera name contains special characters i.e.

- ! ” £ $ % etc you will get this message! “Name contains illegal characters < , . > * etc”

Change the camera name by removing the illegal characters and test again


Graphical user interface, application

Description automatically generated

Graphical user interface, application

Description automatically generated



Live images will now be displayed

Camera stream settings can be checked in this menu, set up recording as required


Graphical user interface

Description automatically generated



**Footnote**

If adding multiple cameras to the VL-NVR that don’t have the pre-configured password shown below


Graphical user interface, application

Description automatically generated

You can edit the passwords of the Protocol options * Protocol type is fixed*



Graphical user interface

Description automatically generated



Example

You are adding 16 Onvif IP cameras with a password of Onvif123, change the Onvif password to Onvif123, this will allow the V-NVR to find the cameras on a camera search ready to add.





This completes the procedure
