INTRODUCTION

Vista’s QSW-16\24 CCTV Ethernet switches support a single fibre uplink via the SFP 1Gbit/s standard. All that is required is the purchase and fitting of a pair of identical SFPs (one each end) according to your installed fibre and application – refer to the section VARIOUS SFP STANDARDS below.

Fibre provides advantages over copper 1Gbit/s but involves increased cost and specialist skills to “run”;

• Where vastly increased distances are required – 550mtrs upwards towards 160km

• Where certain installation sites and cable routing via copper would risk induced\inducing voltages etc

• Where explosive environments demand it




VARIOUS SFP STANDARDS!

For the fibre aspect of an SFP there are many considerations and options that need to be considered before you chose and purchase – strongly suggest purchasing identical SFPs in matched pairs;

• Multi-mode or single-mode – to match the fibre that has been installed\run-in!

• Wavelength and distance supported\required – some examples;

SX – 850 nm, max 550mtr

LX – 1310 nm, max 10 km

EX – 1310 nm, max 40 km

ZX – 1550 nm, max 80 km

• Single fibre core or duplex

• Fibre Connection Type – normally LC duplex or single (LC duplex example below)

INSERTING SFP

Simply power down the QSW16\24 at each “end”, insert the SFPs and the fibre connections, then power up.

SFP Module – duplex LC fibre

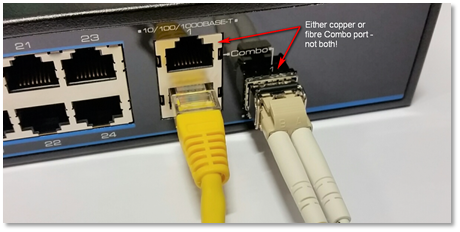

SFP installed – note copper OR fibre, not both!

SUPPORTED SFP MODULES

The following have been tested;
