INTRODUCTION


The following Procedure explains how to set up a Audio Input from a VK2-IP Camera to the VIPER NVR/DVR Range.

Note.

The procedure assumes you already have set up the audio source on the VK2-IP Camera. This procedure is available here

https://vistacctv.freshdesk.com/support/solutions/articles/14000103600-vk2-how-to-connect-an-audio-source-to-vk2-ip-camera


Procedure

  • Right click on screen with mouse, Menu appears then left click [Log In] enter user and password to login [Fig 1]

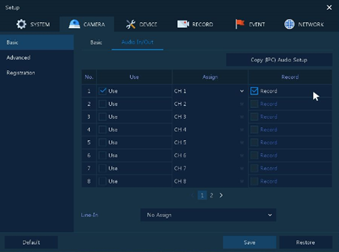

  • Set up Menu will be displayed Select Camera > Basic > Audio In/Out tab [Fig 2]
  • Select the channel camera input that has audio connected, to enable audio
  • Select Record if wish to Record Audio
  • Click Save

Fig 1

Fig 2


  • Then go to Camera Advanced
  • Select Channel/Camera

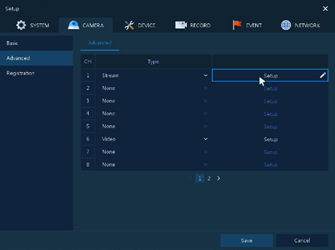

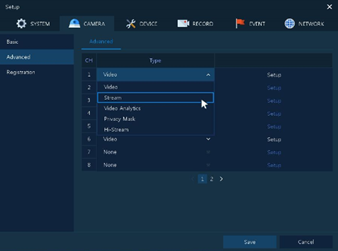

  • Select Stream then click set up [Fig 3 & 4]

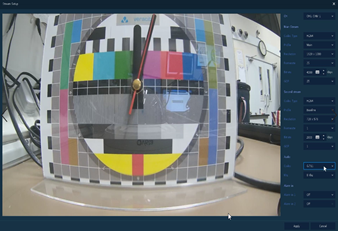

  • Enable audio on camera set up [Fig 5]
  • Click Apply the Save


Fig 3

Fig 4


Fig 5

Fig 6

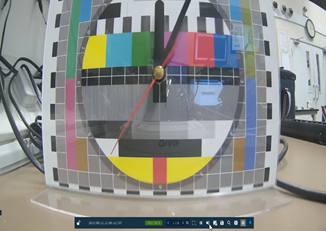

To listen to audio, select Channel and click on Speaker Output Icon [Fig 6]



This completes the procedure.
